RFID cat door using Arduino




This is a cat door/flap that can only be opened by the animal that wears the appropriate RFID tag. Arduino controls the process. It features a custom made antenna large enough to function as a gate, which makes it easy for the animal to activate and quite reliable. Some methods and techniques are borrowed from my previous project, the RFID cat feeder. Whereas the feeder controls access to a food bowl, the door controls access to an entire room. The latest code can also distinguish between tags to allow the system to behave differently for different individuals.

arduino RFID cat door




RFID door (entering) from champenoise on Vimeo.
How it works:
1. In the beginning the door is locked, cat is outside
2. Cat walks up to the gate, RF tag gets read within about 4 inches
3. Door unlocks and a light comes on.
4. Timer ensures that door stays unlocked long enough to give cat a chance to respond
5. Cat pushes open the flap and enters
6. Flap falls back, activates Hall effect sensor, and the door locks
7. Going from the inside out, an infrared proximity sensor detects the presence of an animal if within about 10 inches and unlocks the door.

Most animals will quickly learn to push the flap in response to the click (lock) and the light. Make sure that the edges of the door and the doorway are padded with soft material for when the tail gets caught! A few painful experiences may be enough to make the cat never want to go in there again.

The electronics are shown without enclosure, but it is advised to put an enclosure around the electronic parts once you’re done. It is not further discussed in this Instructable however.

Step 1: Parts list

– Arduino Duemilanove

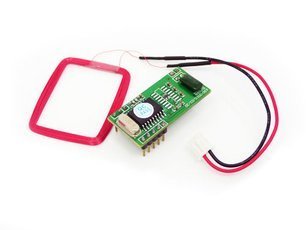

– 5V RF reader module (Seeed Studio 125Khz UART or equivalent. Most readers come with a small antenna. To use the custom made antenna discussed here, you need a reader that allows connecting an external antenna)
– RF tag (I used these 35mm disc shaped ones)
– About 86 feet of 24 gauge magnet wire (longer than the piece shown in the photograph)
Sharp GP2D12 infrared proximity sensor
– Two 12V electronic cabinet locks (Nordson electronic). Solenoids, basically.
– One 12V DC power supply
– Two TIP120 Darlington transistors
– One Hall-effect sensor
– One or more magnets to activate Hall-effect sensor over a range of about 2cm
– One 100 Ohm resistor
– Four 2 KOhm resistors
– Two pushbuttons
– One LED
– One hinge (one that moves easily but without much lateral movement, for precision)
– One 6″ x 9″ piece of 1/8″ thick Plexiglas and perhaps another piece of about 6″ x 3″  to mount the locks
– Hookup wire, including about 27″ extra thin (26 AWG or thinner)
– Nuts, bolts and serrated washers
– Rubber isolation strip or other soft material for padding the edges of the door and door post

READ  Mini BillBoard using Arduino

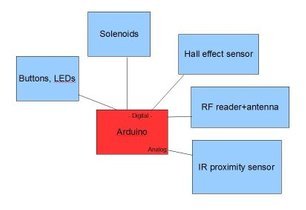

The system comprises several ‘modules’ (solenoids, RF reader, and so on). One of the pictures here shows the basic plan with the modules connected to the Arduino (the electronics). In the next steps the mechanical parts and each of the modules will be discussed in detail.

Step 2: Make the door

The door is a Plexiglas flap hanging on a hinge. At the bottom, the doorpost will have two solenoids, one on each side of the flap, to block unauthorized animals from getting in. Pretty straightforward. Just a few things to keep in mind:

Make sure that in the resting state, the flap is centered in between the two solenoids. In the picture that is in the red area around the dotted line down the middle. To achieve this it helps to have no heavy things hanging on one side, and to use a hinge with little friction.

It helps to have a hinge without much lateral movement (sideways movement within the plane of the wall). This will help to make the hall-effect sensor (a magnet-actuated switch) work. I will discuss this more in detail in step …

The door needs to be rigid but light-weight so that it is easy to push it open and doesn’t hurt when a tail gets caught. Make the corners smooth and add padding on the edges and the door post to minimize tail tribulations

Step 3: Make an antenna

The antenna is nothing more than a coil of magnet wire connected to the RF reader. Most RF readers come with an antenna, but some allow the use of an external antenna. For this project I made a square antenna of 10 x 10 inches by winding 24 gauge magnet wire 24 turns around a sawed off bucket to make it sturdy. The distance between turns has to be as small as possible. I mounted the thing on the plywood with two pieces of wood as spacers to make it stand off from the wall a bit so the cat could activate it farther from the wall. The 35mm disc tags that I use are read up to 4 inches of the plane of the coil. The RF reader and antenna are powered with the 5v from the Arduino. Even though the Arduino works fine with just the USB cable, the RF reader works better when the Arduino is plugged into the wall with the 9v power adapter.

READ  All in one Remote using Arduino

More info about coil antennas:
Microchip Inc. Antenna circuit design for RFID applications (pdf)

Step 4: Hook-up the RF reader

This project consists of several ‘modules’ that you need to hook up to the Arduino and test in advance. First hook-up the RF reader. You can use the 5v output of the Arduino to power it, and a digital port (I used 2) to get the signal. The RDM630 that I used also has pins for a led that I don’t use. It also has an RX pin to send info back to the RF reader, but I don’t use that either. Hook-up your antenna, get a tag and use the serial monitor of the Arduino to see if it’s detected. Now you can also start working on improving the antenna by trying adding or removing turns, trying different shapes et cetera. Power the Adruino with the 9v power supply, not just USB because at least in my case that didn’t work. You can download the file named ‘rfid3.pde’ to test. The code requires NewSoftSerial.h which can be obtained here

Step 5: Add solenoids

arduino RFID cat door schematic

Hook-up the solenoids up to the Arduino as in the schematic: connect the TIP120s to digital ports 5 and 6 with 2k resistors in between. One pin goes to ground, the other goes to the solenoid, with a diode across it (make sure you get the polarity right), and to the 12v supply in the end. The other wire of the power supply is ground. Connect that to the other grounds. Just connect all grounds of all components including the Arduino together. Over here you can download code to specifically test the two solenoids

READ  Sending and Receiving String via UDP using Arduino

Step 6: Add Hall effect sensor

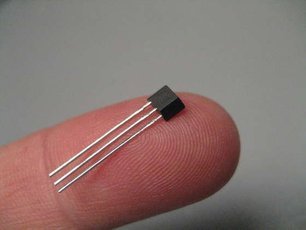

The Hall effect sensor is for detecting whether the door is in the center, i.e. within the range that closing the locks makes sense. There are other solutions possible, such as mechanical/optical rotary encoders, contact sensors, beam break sensors. The main reasons for choosing a Hall effect sensor were that it does not add friction, it can be covered entirely, and I also was just curious how they work.

I did not want to put magnets on the door because that would make it heavier, so instead I put the switch on the door and the magnets in the door post. I had to use thin, very flexible wire otherwise the rigidity of it would push the flap off center. The sensor and wire is simply taped to the Plexiglas. I have two little magnets in the door post. At the closest point the sensor and magnets are 5mm apart. The range is about 3cm.

Connect the signal pin of the Hall sensor to pin 4 and to through a 100 ohm resistor to 5v. Connect ground pin to the other grounds and the vcc pin to 5v. Add an LED to digital pin 7 with the appropriate resistor (used a green one with a 220 ohm resistor).

Download Hall_effect.pde to test this part of the system.

Major Components in Project

proximity sensor
power supply
Darlington transistors
pushbuttons



For more detail: RFID cat door using Arduino
