Spinduino – IoT Fidget Spinner

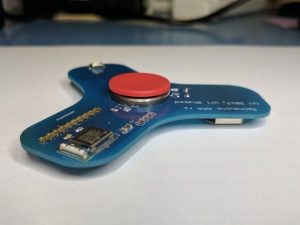

A smart, programable Fidget Spinner with the following features:
Spinduino – IoT Fidget Spinner




* JavaScript programmable
* 10-Pixel RGB PoV display (using APA102 LEDs)
* Spin count / speed detection using a magnetic latch
* Using Nordic Semiconductor nRF52832 chip
* Bluetooth Low Energy (BLE) communication with smart phone / computer for controlling the display, reading the spin count and programming
* Over-the-air firmware upgrades
* Fully open-source

They have several improvements over the first version:

  1. 5V charge pump for driving the LEDs (TPS60150)
  2. Power for LEDs and hall effect sensors controlled by the CPU
  3. Ground copper pour under the board
  4. Board is now truly symmetric – first version was slightly asymmetric
  5. Tighter grip of the bearing

These improvements give consistent light output from the LEDs, and enable saving power while the beacon in stand-by mode. The first prototype used about 15mA in standby (4mA by each hall-effect sensor, and another 7 mA by the LEDs), causing the CR2032 batteries to last only for a few hours.

Soldering the PCB and trying to run it revealed some issues with the new version. The most prominent one was switching the Enable and Flying Capacitor pins of the 5V Charge pump (TPS60150), which basically rendered it useless, as it was feeding the LEDs around 2.5V instead of 5V. Also, pouring copper below the antenna of the BLE module was not a good idea, as it reduces its performance. I also used the wrong footprint for the Logic Level converter (MC74VHC1GT125), so I had a hard time soldering it.

I designed a third prototype version of the board to address these issues, and sent it to the fab. meanwhile, I decided to try hacking around the issues by hacking the board:

You can see how I soldered the capacitor directly to the relevant pin of the TPS60150 (green arrow), and also cut the original trace leading to that pin (the one that goes below the capacitor). I also added a pull-down resistor to the Enable pin (red arrow). This was done in order to ensure the charge pump will start in sleep mode. Otherwise, with the pin floating, it would randomly start before the CPU had a change to pull the line low, causing the LEDs to randomly flicker, sometimes drawing so much power that the CPU could not even start correctly.

Finally, after fixing the above issues, the board was running smoothly. I tested it with the following code, that would simply alternate between red and blue colors, depending on the magnetic sensor reading:

Read more: Spinduino – IoT Fidget Spinner




This Post / Project can also be found using search terms:

  • makersbox Programmable POV Fidget Spinner
