Summary of GWINSTEK C-1200 MULTI-CHANNEL LORA TESTER
Saelig Company introduced the GWInstek C-1200 LoRa Tester, a 1U rackmount, multi-channel tester that performs transmitter and receiver LoRa evaluations. It supports spectrum and time-domain analysis, FEI and TOA, sensitivity, BER and PER, sub-GHz and 2.4 GHz bands, and FSK tests. Users can edit transmitted payloads and view received data in binary/HEX or ASCII. An optional C-1201 transfer box enables easy DUT connections and control via UART/SPI/I2C. The C-1200 displays CSS spectra and time-domain signal changes and measures frequency error to aid production and quality control.
Parts used in the C-1200 LoRa Tester:
- GWInstek C-1200 LoRa Tester (1U rackmount tester)
- C-1201 transfer box for DUT connection
- Support for UART interface
- Support for SPI interface
- Support for I2C interface
- Support for sub-GHz frequency bands
- Support for 2.4 GHz band
- FSK signal test capability

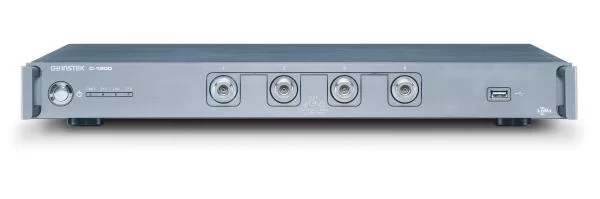

C-1200 is the first multi-channel LoRa-specific 1U rackmount tester for transmitter and receiver signal evaluation
Saelig Company, Inc. has introduced the GWInstek C-1200 LoRa Tester – a one-box tester that incorporates a multitude of LoRa transmit and receive tests. The C-1200 provides transmitter tests that include spectrum analysis, time domain, FEI (Frequency Error Indicator), and TOA (Time-On-Air). LoRa Receiver tests include sensitivity, BER (Bit Error Rate), and PER (Packet Error Rate). In addition to sub-GHz frequencies, the C-1200 also supports the 2.4GHz band and the FSK signal test. Users can easily edit the transmitted test payloads. Receiving data formats supported include binary/HEX, and ASCII code, which allows data transmission results to be easily verified. A useful transfer box C-1201 is also available for easy connection of the C-1200 to a LoRa module being tested and controlled via UART/SPI/I2C interfaces.
The C-1200 can directly perform LoRa transmission signal measurement in the frequency domain as well as the time domain. In the frequency domain, LoRa’sCSS (Chirp Spread Spectrum) signal spectrum can be directly displayed; in the time domain, signal changes within a set time range can be displayed.
LoRa transmission signals may encounter a frequency error caused by environmental factors, resulting in a decreased sensitivity or loss of a packet. FEI can be used to measure the DUT transmission frequency error , so that adjustments or corrections for this error can be made during production or quality control, ensuring communication quality in deployed LoRa networks.
Read more: GWINSTEK C-1200 MULTI-CHANNEL LORA TESTER
- What transmitter tests does the C-1200 perform?
The C-1200 performs spectrum analysis, time domain analysis, FEI (Frequency Error Indicator), and TOA (Time-On-Air) transmitter tests. - What receiver tests are supported by the C-1200?
The C-1200 supports sensitivity, BER (Bit Error Rate), and PER (Packet Error Rate) receiver tests. - Which frequency bands does the C-1200 support?
It supports sub-GHz frequency bands and the 2.4 GHz band. - Can the C-1200 test FSK signals?
Yes, the C-1200 supports FSK signal testing. - How can users edit transmitted test payloads?
Users can easily edit the transmitted test payloads using the tester’s payload editing capability. - What received data formats does the C-1200 support for verification?
Receiving data formats supported include binary/HEX and ASCII code for easy verification. - What is the purpose of FEI measurement on the C-1200?
FEI measures DUT transmission frequency error so adjustments or corrections can be made to ensure communication quality. - What does the optional C-1201 transfer box provide?
The C-1201 transfer box enables easy connection of the C-1200 to a LoRa module under test and control via UART, SPI, or I2C interfaces. - Can the C-1200 display LoRa signals in frequency and time domains?
Yes, it can display LoRa CSS signal spectrum in the frequency domain and signal changes within a set time range in the time domain.
