Summary of COMPULAB’S IOT-GATE-IMX8 IS A LOW COST, MODULAR IOT GATEWAY OPTIMIZED FOR INDUSTRIAL APPLICATIONS
CompuLab’s IOT-GATE-iMX8 is a compact, rugged industrial IoT gateway based on the UCM-iMX8M-Mini SoM with NXP i.MX8M Mini, up to 4GB RAM and 128GB storage. It provides extensive wired and wireless connectivity, industrial-grade durability, isolated interfaces, wide temperature and voltage tolerance, and multiple mounting options for control and monitoring applications.
Parts used in the IOT-GATE-iMX8:
- UCM-iMX8M-Mini System-on-Module (NXP i.MX8M Mini SoC)
- Up to 4GB RAM
- Up to 128GB storage
- Built-in LTE modem
- GNSS module
- WiFi 802.11ax radio
- Bluetooth 5.1 radio
- 2x Ethernet ports
- Up to 3x RS485 / RS232 ports
- 3x USB ports
- 2x CAN-FD interfaces
- Digital I/O
- Rugged miniature housing
- Power input supporting 8V to 36V
- DIN-rail, wall, and VESA mounting hardware

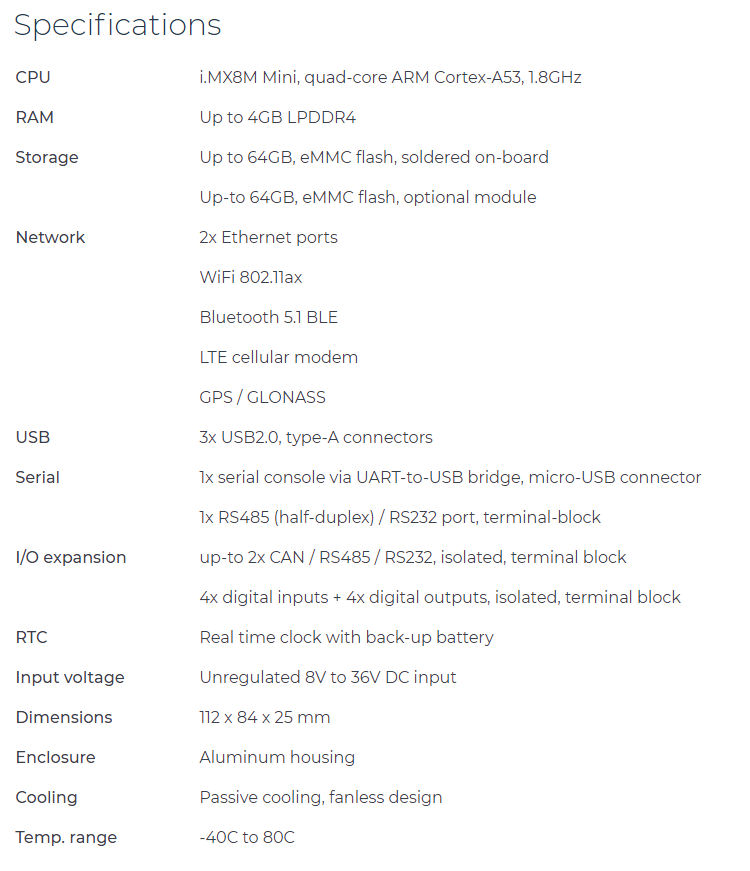

CompuLab introduces IOT-GATE-iMX8 – a low cost, industrial IoT gateway, offering exceptional connectivity and versatility in a miniature, rugged housing. Built around CompuLab’s UCM-iMX8M-Mini System-on-Module, IOT-GATE-iMX8 features the NXP i.MX8M Mini SoC coupled with up-to 4GB RAM and 128GB storage.
Targeting industrial control and monitoring applications, IOT-GATE-iMX8 delivers an assortment of wireless and wired interfaces required in typical IoT systems:
- Built-in LTE modem and GNSS
- WiFi 802.11ax, Bluetooth 5.1
- 2x Ethernet, up-to 3x RS485 / RS232 ports
- 3x USB, 2x CAN-FD, digital I/O
Optimized For Industrial Deployment
IOT-GATE-iMX8 is specifically designed to address the requirements of IoT integration in industrial environments:
- Operation in wide temperature range of -40C to 80C
- Shock, vibration, dust and humidity resistance
- Wide input voltage range of 8V to 36V
- Isolated industrial interfaces (CAN, RS485, digital I/O)
- DIN-rail and wall / VESA mounting
Read more: COMPULAB’S IOT-GATE-IMX8 IS A LOW COST, MODULAR IOT GATEWAY OPTIMIZED FOR INDUSTRIAL APPLICATIONS
- What processor does the IOT-GATE-iMX8 use?
It is built around the UCM-iMX8M-Mini System-on-Module featuring the NXP i.MX8M Mini SoC. - How much RAM and storage does the gateway support?
It supports up to 4GB RAM and up to 128GB storage. - Does the device include cellular and GNSS capabilities?
Yes, it includes a built-in LTE modem and GNSS. - What wireless interfaces are provided?
WiFi 802.11ax and Bluetooth 5.1 are provided. - What serial and fieldbus interfaces are available?
It offers up to 3x RS485/RS232 ports and 2x CAN-FD interfaces. - What environmental conditions can the IOT-GATE-iMX8 operate in?
It operates in a wide temperature range of -40C to 80C and is resistant to shock, vibration, dust, and humidity. - What power input range does the gateway accept?
It accepts a wide input voltage range of 8V to 36V. - Are industrial interfaces isolated?
Yes, CAN, RS485, and digital I/O are isolated industrial interfaces. - What mounting options are available?
DIN-rail, wall, and VESA mounting are supported.
