12-Multi National Digital Clock on Arduino UNO

prototype

The presence of 12-Multi-National Digital clocks is very common at the lobby / front desk of star hotels, showing time & dates of several countries where from most of the guests to arrive to stay at the hotel. One common feature of these clocks is that they are majestically looking elegant dial clocks!

I tried to achieve that feature using a cheap ATMega-328 alias bare-minimum Arduino UNO microcontroller [which hardly costs $3 per piece], few cheap 128*128 TFT displays and an RTU DS3231.

The principle of operation:

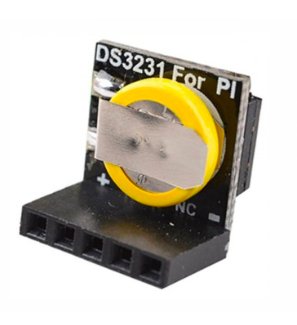

The DS3231 is a very precise RTU which has an inbuilt temperature sensor for adjusting the clock frequencies for temperature corrections. It maintains very precise timings over long durations. DS3231 connects on I2C Bus.

Each TFT ILI9163 is a 128*128 dots color display runs on SPI bus along with Reset & AO pin and it needs only one extra GPIO pin per display to complete its connection with the Arduino. That is the crux of this cheap yet versatile multi-nation digital clock and the cost is $46 for 12-display system.

Let us see how?

Advertisement

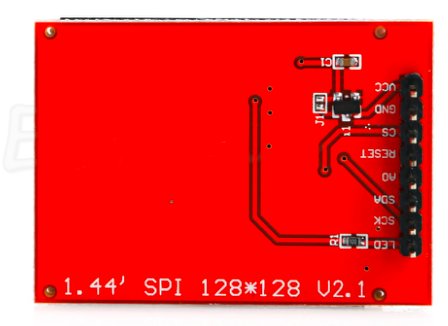

Each TFT ILI9163 Runs on 5volt / 3.3volt and has the following pins – VCC, GND, LED, CS, RST, AO, SDK & SCK. Out of these VCC, GND, LED is common pins. The remaining pins can be common depending on the choice.

ILI9163 PinsNature of pinsUNO pins
Disp-1Disp-2Disp-3Disp-4
VCC5 volt / 3.3 volt5V / 3.3V
GNDOnly GroundGnd
LED5 Volt / 3.3 Volt5V / 3.3V
CSMust be different pins for each displayA1A2A3Digital pin 2
ResetCan be common or RES pin of UNORES pin of UNO
AOCan be common or Different pins.A0
SDAFixed pin for all displaysDigital pin 11
SCKFixed pin for all displaysDigital pin 13



DS3231 PinsUNO Pins
VCC5 Volt
GNDGnd
SCLA5
SDAA4



Using the above tables one can see that apart from 5 fixed / specific pins, for each UNO pin one can create one country-specific display. Like – A1, A2, A3, D2, D3, D4, D5, D6, D7, D8, D9, D10

Total 12 different national clock display can be created on one UNO!

* D0, D1 & D12 cannot be used as they are special purpose pins.

Schematic: [for 4 displays multi nation clock]

Schematic

To add more displays, just repeat the connections.

Bill of Materials & Price for 4 displays a multi-nation clock

1 * DS3231 – $1
1 * ATMEGA328 / UNO – $3
4 * 128*128 TFT [ILI9163] – $14 [$3.5 a piece ] ————————————————–
For 4 display multi-nation clock = $18; For 12 display multi-nation clock = $46
—————————————————

The schematic is shown for 4 displays a multi-nation clock. To go up to 12 displays, to just add so many displays, repeat the connections and make necessary changes in the sketch.

Software

Prototype

Here I have just built up a 2-display-clock. To add more displays, Just follow the sketch, repeat the display connections & make necessary changes in the program sketch and you will be able to build your 12-nation-clock in no time.

Download source folder





Read More Detail:12-Multi National Digital Clock on Arduino UNO
